Structure diagnosis technology

Port structures located in a severe natural condition may be aged and damaged by waves. Therefore, we develop "Structure diagnostic instrument" by nondestructive technology to diagnose and investigate the port structures exposed to such condition.

This nondestructive technology with continuous-wave radar allows us to know the internal condition of the caisson, in a labor saving, efficient, and economical manner without destructive inspection, such as drilling onto the caisson of a breakwater, and promptly diagnose the soundness of an existing port structure.

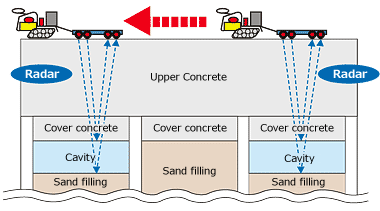

Structure diagnostic instrument on the breakwater

Structure diagnostic instrument
on the breakwater

Usage of "Continuous-wave radar" varying the
frequency allows us to understand the condition of
the parts under the upper concrete structure.

Development period

  • FY1999 to FY2003
