Maintenance of large-scaled dredging and oil recovery vessel "Hakusan"

Protect Japan sea with state of the art

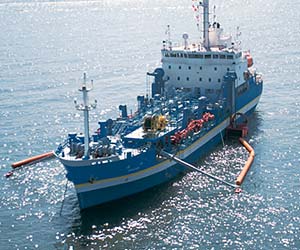

Large-scaled dredging and oil recovery vessel
"Hakusan"

The construction of large-scaled dredging and oil recovery vessel "Hakusan" was planned when the oil spill accident "Nakhodka case" took place in January, 1997 that gave extensive damage to all the coastal areas of Japan Sea, and building was completed in August, 2002. Hakusan is an unique vessel that has double functions of "Dredging" and "Oil recovery", the former is to dig soil and sand out inside the harbor to maintain sea route and the latter is the operation to recover large amount of oil flown out to the sea due to oil spill out accident and others. Our office takes charge of all the processes from the designing to the construction of Hakusan and continuously executed the technical support such as facility upgrading of Hakusan.

Principal particulars

Hull

Total length 93.9m
Width 17.0m
Depth 7.5m
Gross tonnage 4,184t
Sailing speed 13.1knots
Navigation area Major coasting area (international voyage)

Engine section

Main engine 3,200ps×2
Sub engine 530ps×2
Main generator 2,200kW×2
Sub generator 350kW×2
Propeller Variable pitch 360 degrees rotation type

Dredging section

Dredging method Side drag type
Dredge pump 3,300m3/h×2
Hopper door Conical valve type
Dredging depth -7.5~-18m
Capacity of hopper 1,380m3

Oil recovery device

Oil recovery unit,
broadside installation type,
and throw-in type
250m3/h×1
500m3/h×2
Oily water suction pump 250m3/h×4
Recovered oil tank capacity 1,530m3

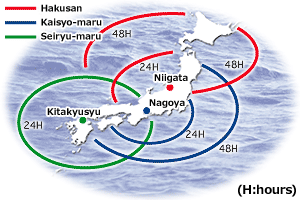

Oil recovery area covered by 3 vessels

Oil recovery area covered by 3 vessels

"Hakusan" can start oil recovery operation in Japan Sea area within 24 hours. Even in case of Hokkaido sea area, she can start operation within 2 days. Enhancing the security system against oil spill out accidents in Japan area is implemented by these operations in cooperation with other boats such as "Seiryu-maru" and "Kaisyo-maru".


Propeller units rotating 360 degrees

Propeller units rotating 360 degrees

No rudders are found on this vessel as entire propeller units themselves can rotate to change sailing direction of the vessel directly. Thanks to this unique system she can sail freely as to allow turning round on the spot, which characterize excellent maneuverability even in the narrow water area.


Oil recovery operation

Once large sized oil spill out accident is generated and floating oil washed to the coast lines, enormous damages might be given to marine resources and oceanic environment. Hakusan has her mission to rush immediately to accident site to onset recovery work before floating oil diffuses largely.

Broadside installation type oil recovery device

Broadside installation type oil recovery device

This is the main oil recovery device that enables quick recovery in batch of floating oil with much liquidity appearing at the initial stage of oil spill out accident. Even on the surface of turbulent waters, the system can execute stable recovery operations.

Throw-in type oil recovery device

Throw-in type oil recovery device

This is the oil recovery device used when oil diffuses in large area with thinner layer.
This is suitable for the recovery of oil with higher viscosity.


Dredging operation

In order to secure safety sea route (navigation course for ocean vessels) in Niigata west port, Hakusan works 24hours a day for dredging operation (* Removing sediment in bottom of the sea)

Broadside installation type oil recovery device

Broadside installation type oil recovery device

This is the main oil recovery device that enables quick recovery in batch of floating oil with much liquidity appearing at the initial stage of oil spill out accident. Even on the surface of turbulent waters, the system can execute stable recovery operations.

Throw-in type oil recovery device

Throw-in type oil recovery device

This is the oil recovery device used when oil diffuses in large area with thinner layer. This is suitable for the recovery of oil with higher viscosity.

Throw-in type oil recovery device

This is the oil recovery device used when oil diffuses in large area with thinner layer. This is suitable for the recovery of oil with higher viscosity.
